1 Phase
Industrial Solid State Relays and Thyristor Units
A range of power units to control single phase loads. Ideally suited for normal or variable resistive loads and transformer & inductive load types.
For simple on/off type firing with a DC logic input, choose the REVO S (RS1). If a time proportioned burst firing with a DC linear input is required or for more complex load requirements, such as feedback, current limit etc, select REVO C (RC1).
You can view our product range by choosing the required load type below.
Product range Single Phase (1PH) Load Solid State Relays and Thyristor Power Controllers
CD3000S 1PH Solid State Relay
- From 10A to 90A
- Max. voltage 480VAC or 600VAC as an option
- Firing mode: Zero Crossing; Burst Firing available with analogue input only
- cUL us is available as an option
- Heater Break alarm option

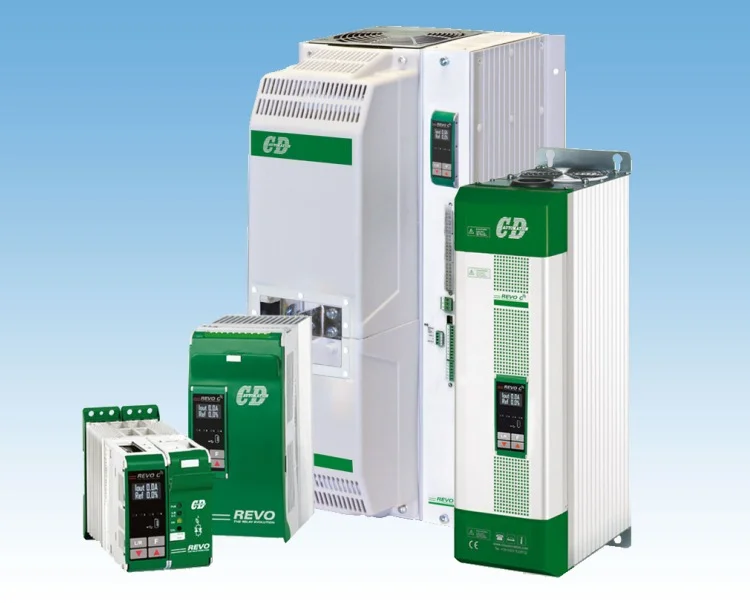

REVO C 1PH
- Phases: 1
- Current Range from 30 to 2100A.
- Voltage Range 480V, 600V and 690V +/-10%.
- Inputs: 4:20mA, 0:10V, SSR and ModBus as std and different Field Bus listed in the Product Coding
- Firing Mode: Half Cycle, Single Cycle, Burst Firing, Delayed Triggering, Phase Angle with or without Soft Start
- Control Mode: Voltage, Current and Power or V2 and I2 with additional Transfer to VxI
- USB: port integrated for configuration in safety mode (No Load and Auxiliary Voltage needed) Unit Powered Through USB
- 100 kA: Short Circuit Current Rating (SCCR) up to 600V
- Approvals CE+EMC; EAC; cUL from 30A to 700A, UL from 800A to 2100A
CD Automation
REVO PC, Reduces Power Peaks
Modbus RTU, Profibus, Profinet, Modbus TCP, Ethernet IP and other fieldbus
REVO PC, Reduces Power Peaks
- Suitable for Resistive Loads and IR Lamps
- To be used with REVO S and REVO Sx
- Firing Mode: SC, HC and Dynamic Burst Firing
- Reduces Peak of Power and let you save Energy
- Modbus RTU, Profibus, Profinet, Modbus TCP, Ethernet IP and other fieldbus
- Heater Break Alarm
CD Automation
REVO S 1PH, Single phase static relay
Inputs: SSR Std; 0:10V, 4:20mA and Heater Break alarm are options
REVO S 1PH, Single phase static relay
- From 30 up to 800A
- Voltage Range 480V, 600V and 690V
- Load type: Resistive, IR Lamp long and medium waveform
- Inputs: SSR Std; 0:10V, 4:20mA and Heater Break alarm are options
- Firing mode: Zero Crossing; Burst Firing available with analogue input only
REVO SSR ANALOGUE 0:10V & 4:20mA Input
- Rating 0:62; 0:74 and 0:90
- Max. voltage 480VAC or 600VAC as an option
- Load type: Resistive, IR Lamp long and medium waveform
- Inputs: 0:10V, 4:20mA and Heater Break alarm are options
- Firing mode: Burst Firing
CD Automation
REVO SSR 1PH Long Life
Inputs: SSR Std; 0:10V, 4:20mA and Heater Break alarm are options
REVO SSR Long Life Solid State Relay
- Range: 0:62; 0:74; 0:90
- Max. voltage 480VAC or 600VAC as an option
- Load type: Resistive
- Inputs: SSR Std; 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Zero Crossing
REVO Sx Multi Channel Low Power Solid State Relay
From 3.5 to 7A
- Number of zones: 4×3.5A, 3×4,5A or 2x7A
- Max. voltage 240V or 480V AC as option
From 50 to 90A
- Number of zones: 2x or 3x 50, 60, 75, 90A
- Max. voltage 480V or 600V AC
General
- Load type: Resistive, IR Lamp long and medium waveform
- Input: SSR Std
- Firing mode: Zero Crossing
REVEX 1PH power controller
- Phases: 1
- Type: Power controller
- Current Range: 30A – 280A
- Max Voltage: 480V, 600V
- Communication: Modbus
- Approvals: CE / UKCA / EAC
- Load: Resistive / Inductive / IRSW / MoSi2 / SiC
